CP Screw Press are aggressive single screw presses with high torque. The compact press features a hollow shaft gear box resulting in a machine that is more portable. They are perfect for compressing, squeezing and dewatering materials through mechanical pressure.

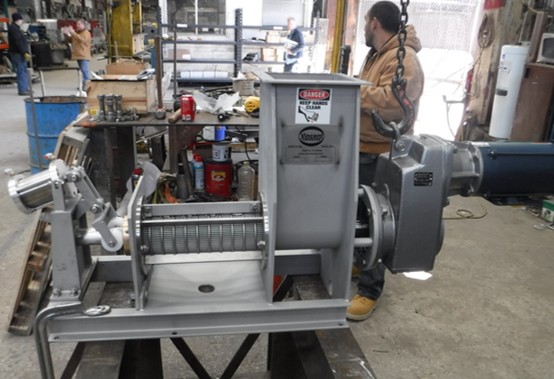

CP-4
The smallest of our presses, the CP-4, is a versatile powerhouse. Popular for laboratory trials due to its compact size, affordability, and ease of implementation. It can be plugged into any 110-volt wall outlet. Also, the capacity is such that it can be conveniently fed from 5-gallon pails. Many of our clients start with the CP-4 to determine efficacy of a process then upgrade to a larger size to increase production capabilities.

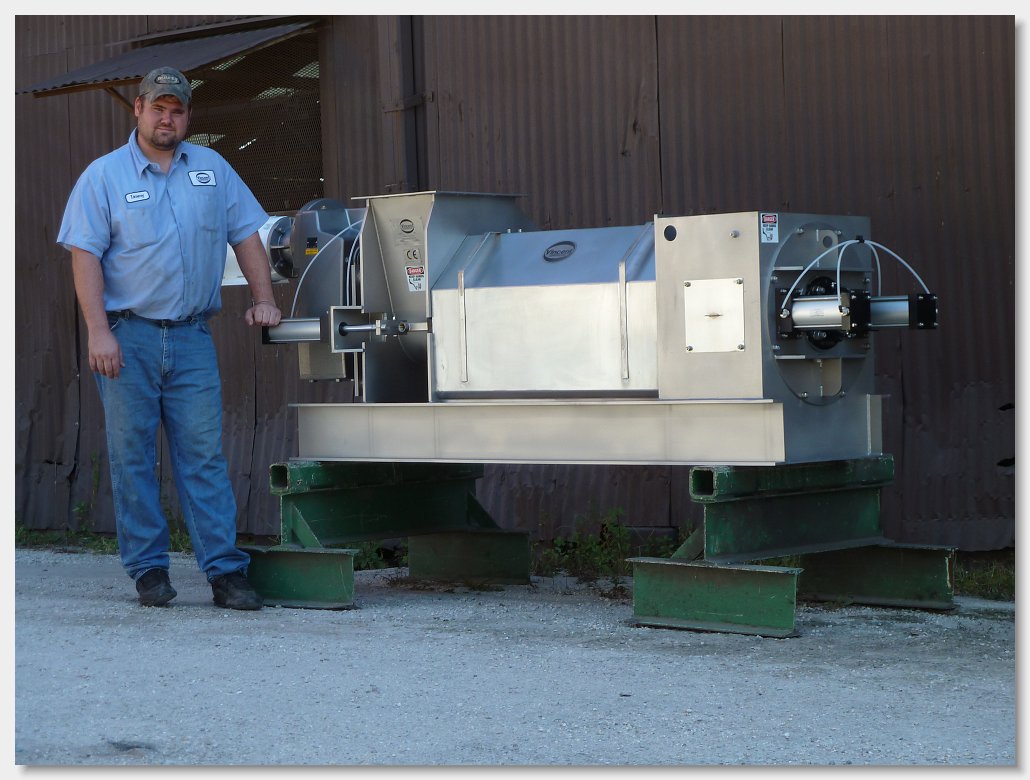

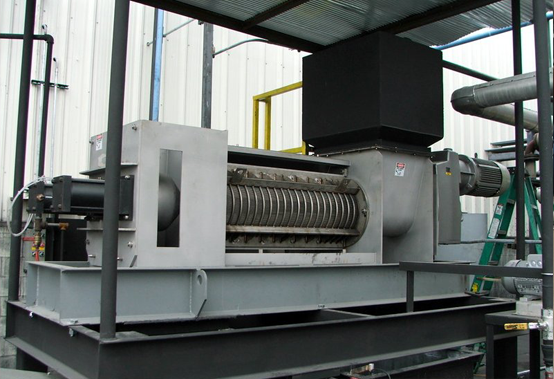

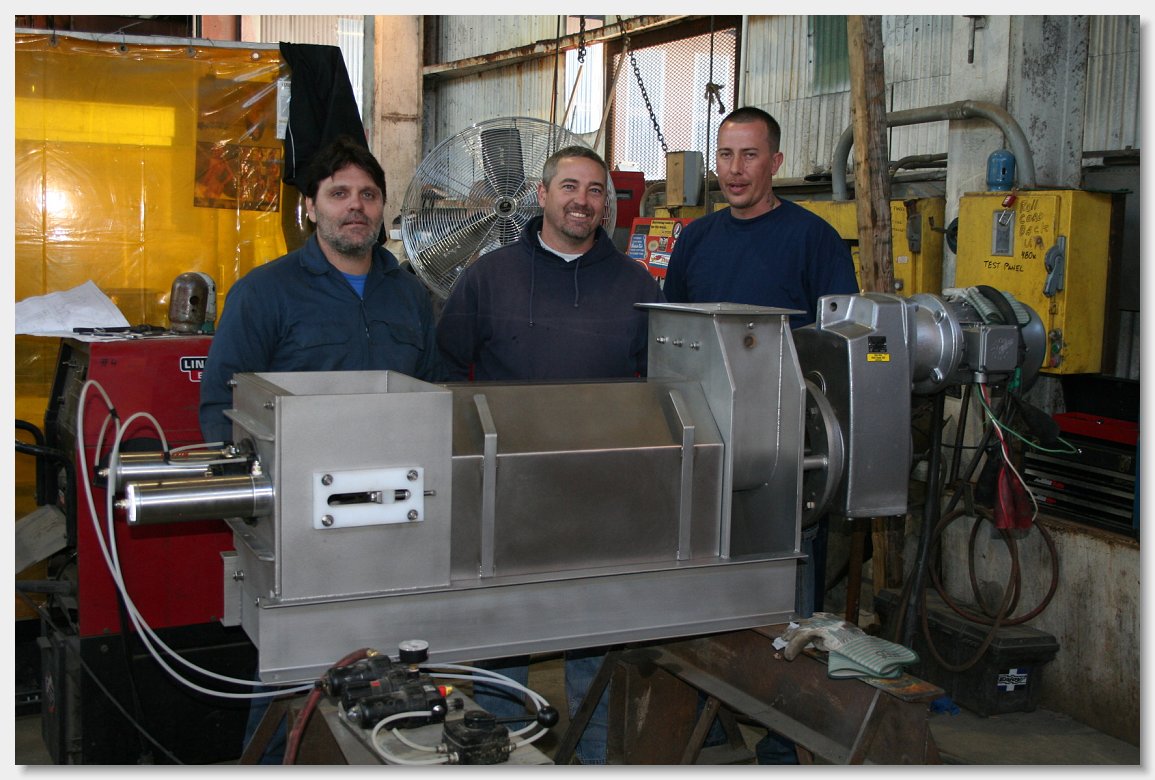

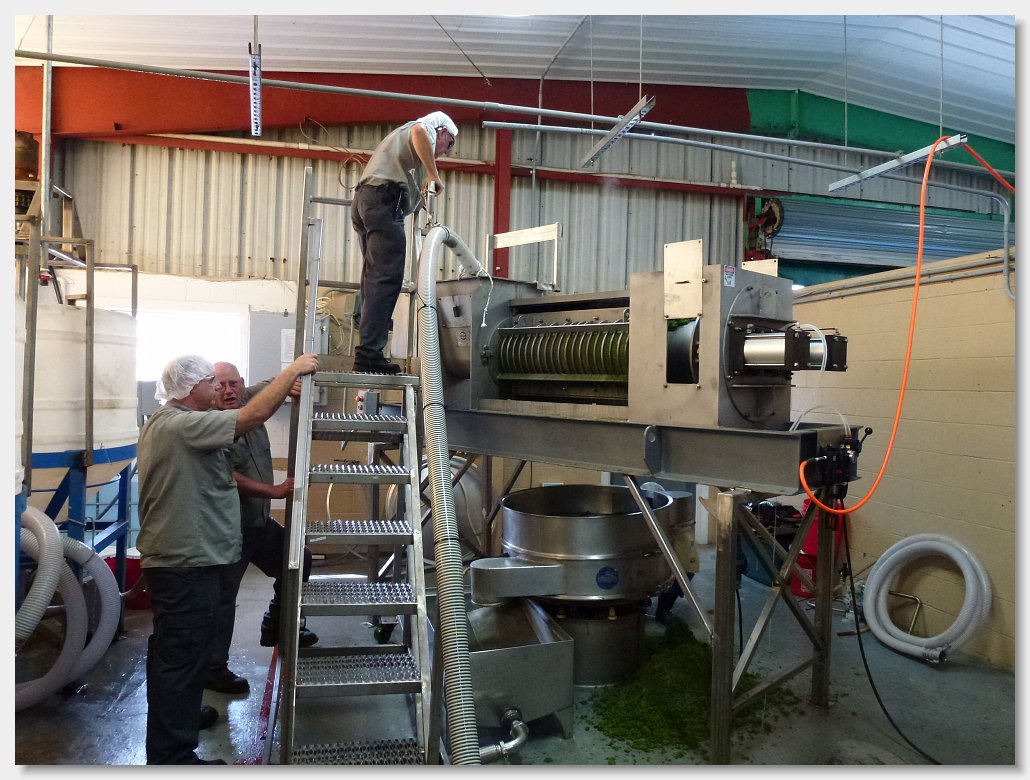

CP-6, CP-10, and CP-12
When you want a little more processing power the CP-6 , CP-10 and CP-12 are at your service. The size ranges from 6 inches to 12 inches respectively for the nominal diameter of the screw. With additional options in our VP, KP and TSP if you need larger or different capabilities.
How it Works
The screw rotates inside a screen, forcing liquid through this screen. The screens are built with stainless steel profile bar (wedgewire) or reinforced perforated sheets. The screw has a graduated pitch with interrupted flighting to maximize dewatering and prevent co-rotation when paired with resistor teeth. Press cake moisture is controlled by a discharge cone, actuated by an air cylinder. This provides an additional level of dewatering control only offered by Vincent Corporation.
Key Features
Applications of the CP Series Screw Press
The CP and VP screw press handles materials often considered unpressable, accepts variable feed rates and has low operating and maintenance costs. These presses are most commonly used in, but not limited to, the following applications.
Customization Available
Over the years we have improved on the CP design to make it easier to clean, upgrade hopper capacity, increase safety, and enhance performance. Units are frequently customized to meet customer needs. Stands with wheels are also available. VFD’s which accept single phase power are used to allow variable speed operation. Gearboxes can be changed for different screw speeds. Various screw options, including hardsurfaced, notched, and conical, are offered. On occasion the press is made vapor-tight, with an explosion proof motor. We work with you to make sure you have the right screw press with the configurations and accessories to optimize your production goals.
Videos of the CP Series in action
The CP Vincent Screw Press provides impressive dewatering capabilities in hundreds of applications. Here are a few of our favorites.
Dewatering Pulp
Carrot Juice in a CP-4
Okra with Tofu Milk
Rent a CP Vincent Screw Press
Want to try a CP Vincent Screw Press at your facility? Our rental fleet is at your service. Our knowledgeable staff will help you select the right press for your application. Our easy to understand rental agreement makes it simple to see for yourself how a Vincent Corporation Screw Press can improve your process be it waste reduction, improving portability, or reducing water content.
Made in the USA
Vincent Corporation specializes in the design, engineering and manufacture of screw presses. The company was founded in 1931 and is today the number one producer of screw presses in North America. Vincent presses can be found in over fifty countries and in over 200 applications described throughout our website. We are proud to manufacture screw presses in the United States that serve the globe.
FAQ
How much does a CP Screw Press cost?
The price of CP Screw Presses depend on the size and other customizations. The CP-4 is one of our most affordable options starting at $240 per week to rent.
How do I know which screw press is right for my application?
We help you figure out which screw press is right for you. Please contact us to let us know the details of your specific application to help us determine the right fit.
Can you press _________ (name your specific application)?
We’ve pressed hundreds of different materials successfully. We’ve also tried pressing things that turn out to be complete failures. Our pressing news features tests using the CP screw press on all kinds of applications. If you don’t see it on our website already, ask. We typically can test your application in house and provide you a video of the results. In situations where the material can’t be sent to our facility we offer rentals so you can test it at your location.
See What a CP Screw Press Can Do for Your Process
From laboratory testing with the CP-4 to full-scale production with larger models, Vincent Corporation has a solution to fit your needs. Our team will work with you to identify the right press, customize it for your operation, and support you every step of the way.
Get in touch today to request pricing, discuss your application, or schedule a rental trial and experience the performance of a Vincent Screw Press firsthand.
